Description
Electronic Eyelet Buttonhole Machine – for Medium and Heavy Fabrics
TEXI QF PREMIUM

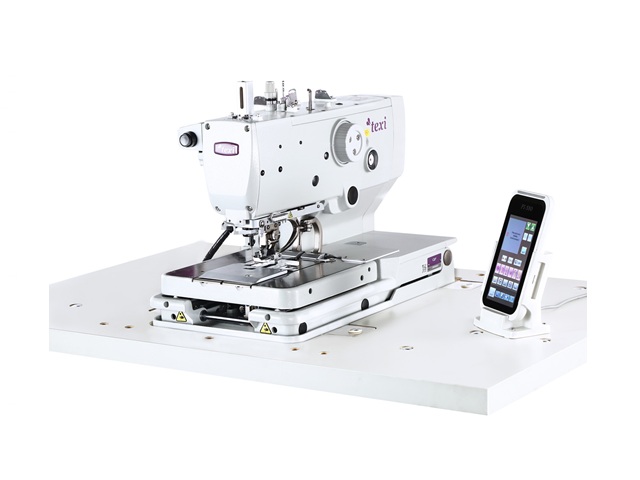

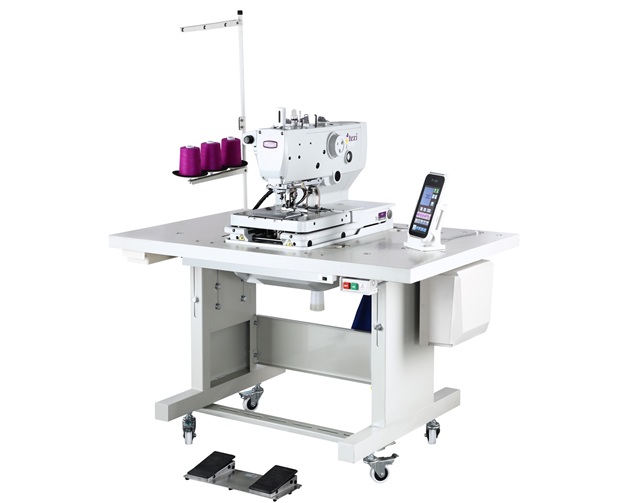

TEXI QF PREMIUM is an industrial electronic eyelet buttonhole machine designed for sewing medium and heavy fabrics. The combination of precise CNC feed and a built-in AC Servo motor guarantees high accuracy, smooth operation and consistent sewing quality in demanding production environments.
The machine is suitable for various types of production. A touch panel control system allows quick and convenient adjustment of buttonhole parameters to individual requirements, including fast buttonhole type selection directly from the panel, improving productivity and flexibility.
The closed lubrication system prevents oil contamination and keeps the sewing area clean, while the integrated LED work light ensures excellent visibility. The machine requires compressed air for operation.
After installing a dedicated knife and anvil (optional), the machine can sew round eyelet buttonholes (“sunburst” type), significantly expanding its application range.
Key features
-
Industrial electronic eyelet buttonhole machine
-
Precise CNC feed system
-
Automatic needle positioning
-
Automatic thread trimming
-
Automatic presser foot lifting
-
Quick buttonhole type change from the control panel
-
Built-in AC Servo motor
-
Closed oil system
-
LED work light
-
Optional round eyelet (“sunburst”) sewing capability
-
Requires compressed air
Technical specifications
-
Max sewing speed: 2,500 stitches/min
-

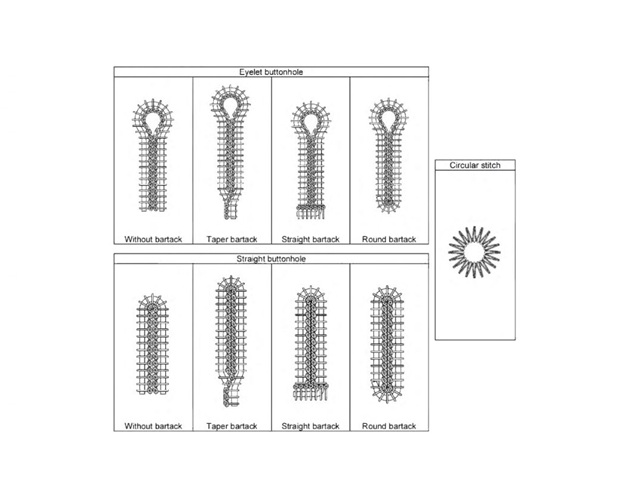

Eyelet buttonhole length: 8 – 42 mm
-
Straight buttonhole length: 5 – 42 mm
-
Max cut-out length: 42 mm
-
Stitch pitch: 0.5 – 2.0 mm
-
Taper bar length: 0 – 20 mm
-
Feed system: CNC
-
Lubrication: central, closed circuit
-
Presser foot lift: 12 – 16 mm
-
Needle system: 558
-
Number of programmed patterns: 9
